Function Boards 4-38

Chapter 4: Board Installation

MBX IP Hardware & Installation Guide

Serial Port

USB

Connectors, Switch, and LED Functions

LED Indication

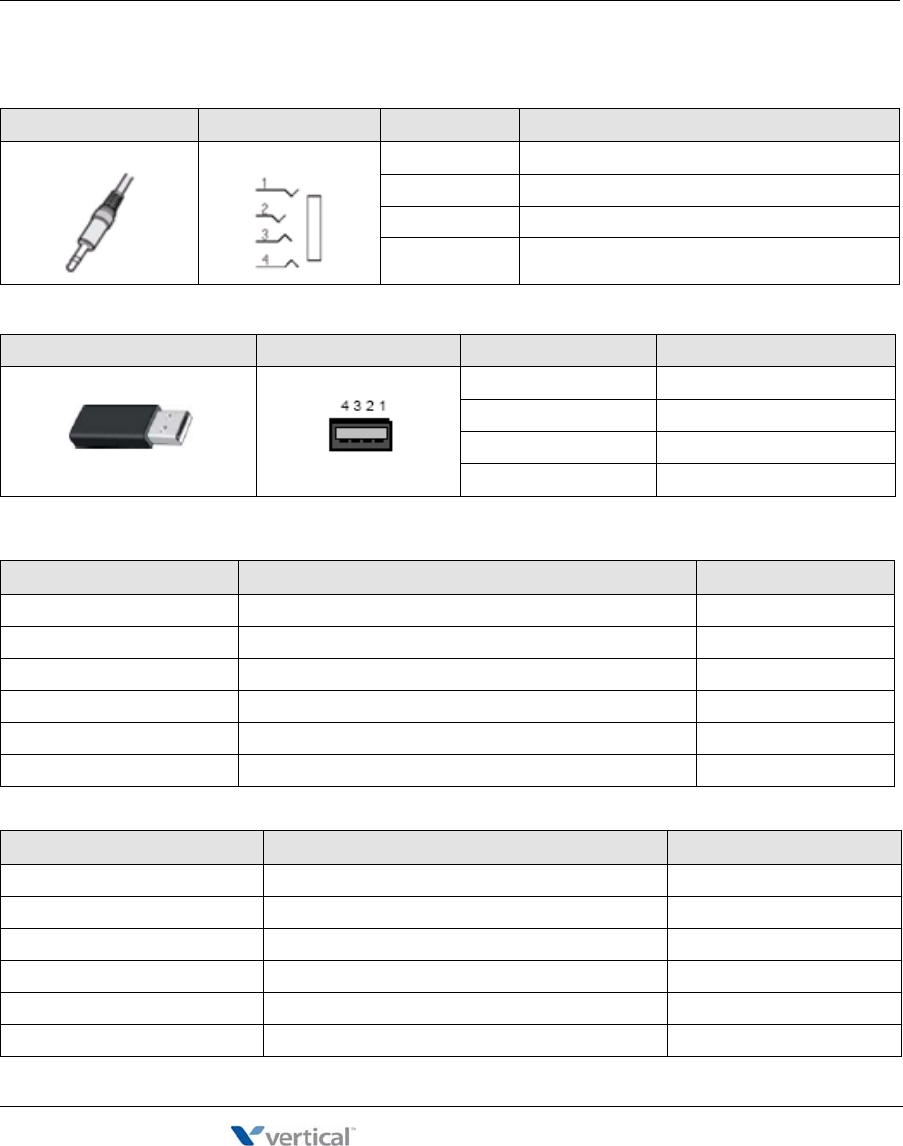

CONNECTOR PIN NUMBER NO SIGNAL HERE

Serial to Audio Jack 1 Signal Ground

2 Receive Data

3 Transmit Data

4 Signal Ground

CONNECTOR PIN NUMBER NO SIGNAL NAME

USB Type A

1 GND

2 D+

3 D-

4 VBUS (+5V)

CONNECTOR/SWITCH FUNCTION REMARK

SW1 4-POLE Dip Switch (Function : not defined) Default: Off

SW2 Battery back-up switch Not Assembled at MP

SW3 Reset switch -

SW4 Watch-dog Enable/ Disable (OFF:Enable, ON:Disable) Not Assembled at MP

CN3 JTGA port for CPU emulator For R&D Test

CN4 JTAG port for FPGA For R&D only

LED FUNCTION REMARK

LD1 Normal operation indication (Activity Indication) Blink (blue Color)

LD2 Memory Full (ON – Full, OFF – Usable) -

LD3 Record (ON – Active, OFF – Idle) -

LD4 Play (ON – Active, OFF – Idle) -

MJ1-LD1 (Green/Orange) ON – Link, Blink – Data Transfer -

MJ1-LD2 (Yellow) ON - 100Mbps, OFF – 10Mbps -

Release 1.7

April 2012
