Pre-Installation 3-7

Chapter 3: KSU Installation

MBX IP Hardware & Installation Guide

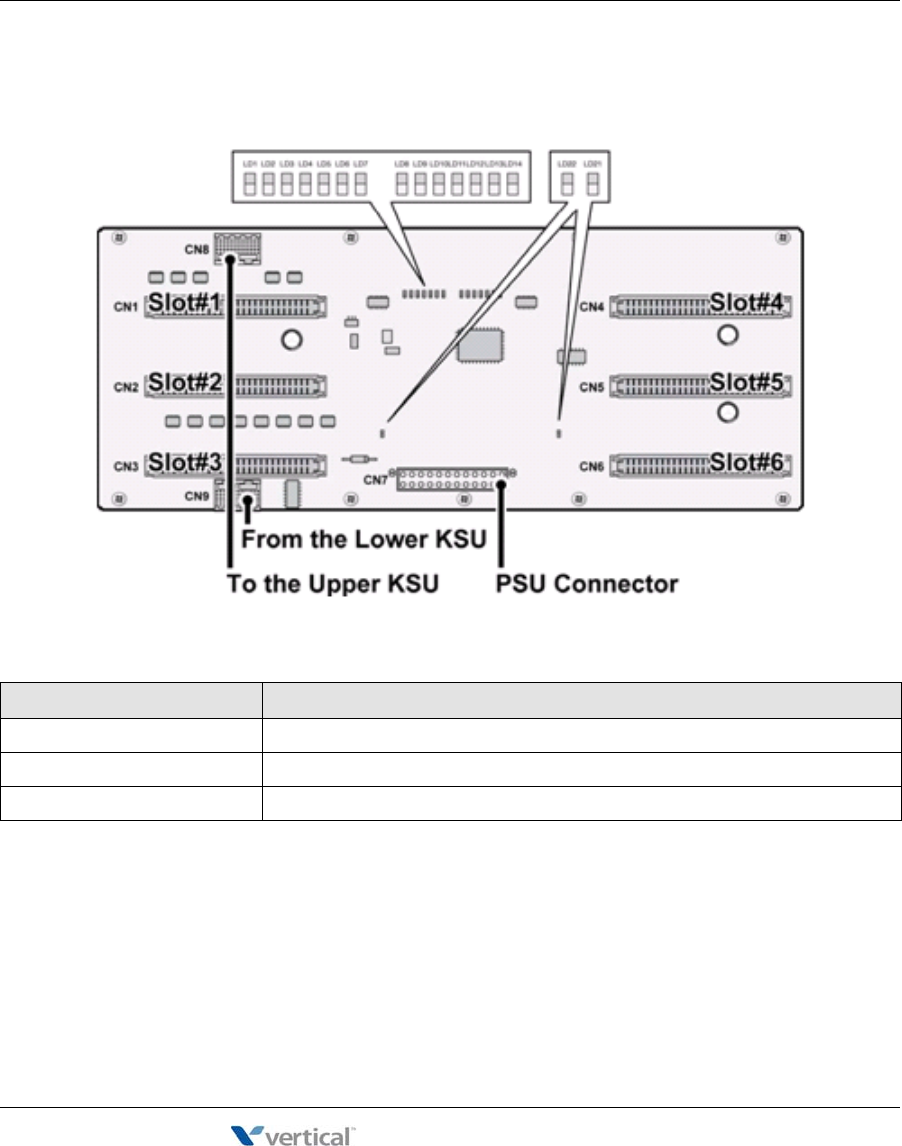

MotherBoard (MB) & Motherboard Expansion (MBE) Diagrams (cont’d)

LED Indications

LED DESCRIPTION

LD1 - LD6 (Blue) Slot #1 - 6 Link/Act - ON, Link/Act is established; OFF, Idle

LD7 (Blue) Upper KSU Link/Act - ON, Link/Act is established; OFF, Idle

LD21, LD22 (Blue) AC Power Indication - ON, AC Powered ON: OFF, AC Powered OFF

Release 1.7

April 2012
