Expansion KSU Installation 3-19

Chapter 3: KSU Installation

MBX IP Hardware & Installation Guide

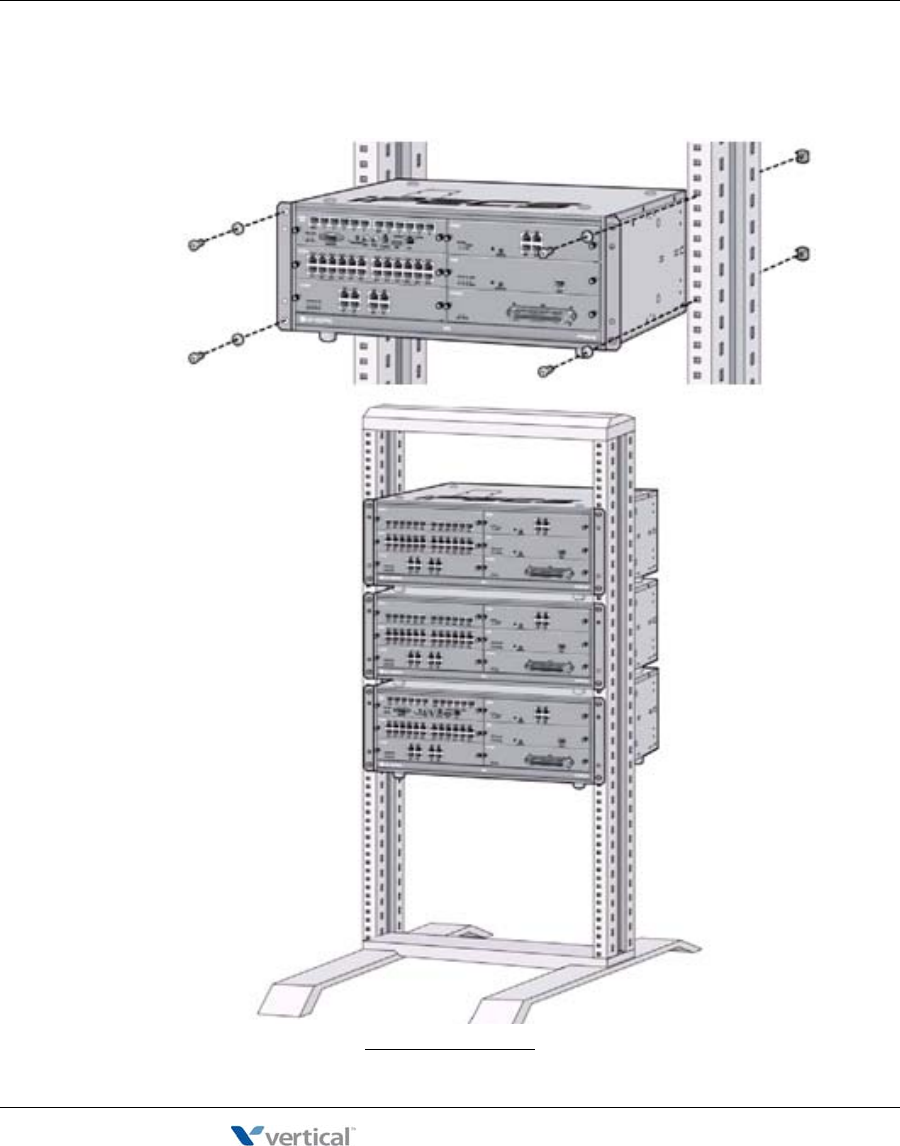

Rack Mounting

Attach System to the rack securely by tightening the screws clockwise.

KSU Rack Mounting

Before Board Installation,

the Dummy cap on top ofthe KSU

should be open, and the Dummy

plates in front should be removed

in order to connect the Expansion

NOTE --

Cable as shown on page 3-17.

Release 1.7

April 2012
